SG150

80 - 95'

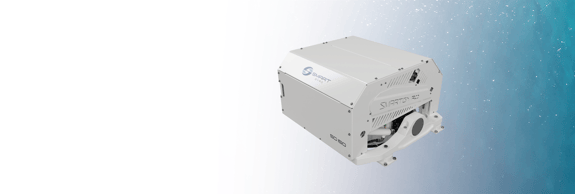

Smartgyro SG150 is the gyro stabilizer of choice for boats from 80-95 ft. Ideal for both new builds and refit installations, the stabilizer can be fully serviced on-board the vessel without the need to lift out for maintenance, ensuring significant time and cost savings.

TECHNICAL SPECIFICATIONS

  • SG150
  • SG120
  • SG80
  • SG60
  • SG40
  • SG20

Target Boat

80 - 95’ or up to 100 tons

Maximum rated speed

5.000 RPM

Angular momentum

37.000 Nms at max. rated speed

Anti-rolling torque

76.000 Nm at max. rated speed

Input voltage (AC)

380V nominal, 50/60 Hz, three phase

Input voltage (DC)

24 Vdc

Envelope dimensions

1.36 x 1.41 x 1.02 m [53.5 x 55.5 x 40.1 in]

Weight

1890 kg [4167 lbs]

Target Boat

70 - 85’ or up to 75 tons

Maximum rated speed

5.000 RPM

Angular momentum

28.000 Nms at max. rated speed

Anti-rolling torque

58.000 Nm at max. rated speed

Input voltage (AC)

380V nominal, 50/60 Hz, three phase

Input voltage (DC)

24 Vdc

Envelope dimensions

1.36 x 1.41 x 1.02 m [53.5 x 55.5 x 40.1 in]

Weight

1690 kg [3726 lbs]

Target Boat

60 – 70’ or up to 60 tons

Maximum rated speed

5.500 RPM

Angular momentum

15.400 Nms at max. rated speed

Anti-rolling torque

30.100 Nm at max. rated speed

Input voltage (AC)

220V nominal, 50/60 Hz, single phase

Input voltage (DC)

24 Vdc

Envelope dimensions

1.08 x 1.11 x 0.87 m [42.4 x 43.7 x 34.3 in]

Weight

980 kg [2160 lbs]

Target Boat

55 – 65’ or up to 50 tons

Maximum rated speed

5.500 RPM

Angular Momentum

12.500 Nms at max. rated speed

Anti-rolling torque

25.000 Nm at max. rated speed

Input voltage (AC)

220V nominal, 50/60 Hz, single phase

Input voltage (DC)

24 Vdc

Envelope dimensions

1.08 x 1.11 x 0.87 m [42.4 x 43.7 x 34.3 in]

Weight

910 kg [2006 lbs]

Target Boat

50 – 60’ or up to 40 tons

Maximum rated speed

7.500 RPM

Angular momentum

9.100 Nms at max. rated speed

Anti-rolling torque

19.000 Nm at max. rated speed

Input voltage (AC)

220V nominal, 50/60 Hz, single phase

Input voltage (DC)

24 Vdc

Envelope dimensions

0.86 x 0.93 x 0.72 m [34.0 x 36.5 x 28.4 in]

Weight

650 kg [1430 lbs]

Target Boat

45 – 55’ or up to 25 tons

Maximum rated speed

9.500 RPM

Angular momentum

5.900 Nms at max. rated speed

Anti-rolling torque

15.500 Nm at max. rated speed

Input voltage (AC)

115V nominal, 50/60 Hz, single phase
220V nominal, 50/60 Hz, single phase

Input voltage (DC)

12 Vdc

Envelope dimensions

0.76 x 0.77 x 0.65 m [29.9 x 30.3 x 25.6 in]

Weight

495 kg [1091 lbs]

LOOKING FOR GREATER SUPPORT?

tech_drawing03 TECHNICAL DRAWINGS Check SG unit dimensions and footprints in detail.
download_new DATA SHEET Read SG units' complete technical specifications.
warranty02 WARRANTY Learn more about SG units' warranty terms and conditions.
brochure02 BROCHURE Download the Smartgyro corporate brochure.

THE FUTURE OF MARINE STABILIZATION

  • MODULAR DESIGN
    The Smartgyro unit can be serviced, maintained, and assembled directly inside the boat.



  • LIQUID COOLING
    The liquid cooling system dissipates heat generated by the motor and spinning bearings while also cooling the inverter and hydraulic manifold.



  • VACUUM ENCLOSURE
    The sealed vacuum flywheel enclosure minimizes air drag to increase performance and reduce heat and power consumption.

  • CONTROL ELECTRONICS
    The gyro control module uses motion sensors and an Inertial Measuring Unit (IMU) to monitor and process real-time boat behavior data.

  • BRAKING SYSTEM
    The pressurized, closed loop braking system dynamically controls the gyro using hydraulic cylinders and proportional valve.



  • DRIVING PERFORMANCE
    The Smartgyro automatically locks the gyro’s counteracting forces during high-speed turns to make for smoother sailing.

TOUCH

BACKED BY A GLOBAL LEADER

BACKED BY A GLOBAL LEADER

Smartgyro boasts a worldwide distribution network backed by strategic partner YANMAR and its companies, including VETUS, Maxwell, and Flexofold.

TOUCH

WORLD-CLASS WARRANTY

WORLD-CLASS WARRANTY

From installation to maintenance and beyond, we are committed to keeping our customers on the water. Smartgyro recreational units come with unique three year/2000 hours* warranty coverage for unrivaled peace of mind.
