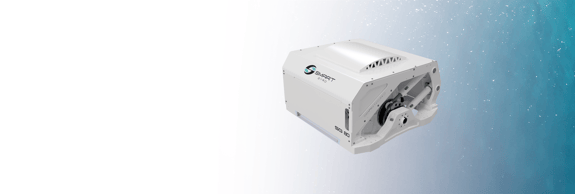

SG80

60 - 70'

Smartgyro SG80 is the gyro stabilizer of choice for boats from 60-70 ft. Ideal for both new builds and refit installations, the stabilizer can be fully serviced on-board the vessel without the need to lift out for maintenance, ensuring significant time and cost savings.

TECHNICAL SPECIFICATIONS

  • SG80
  • SG120
  • SG150
  • SG20
  • SG40
  • SG60

Target Boat

60 – 70’ or up to 60 tons

Maximum rated speed

5.500 RPM

Angular momentum

15.400 Nms at max. rated speed

Max. Anti-rolling torque

42.300 Nm at max. rated speed

Input voltage (AC)

220V nominal, 50/60 Hz, single phase

Control DC power input

24 Vdc

Envelope dimensions

1.08 x 1.11 x 0.87 m [42.4 x 43.7 x 34.3 in]

Weight

980 kg [2160 lbs]

Target Boat

70 - 85’ or up to 75 tons

Maximum rated speed

5.000 RPM

Angular momentum

28.000 Nms at max. rated speed

Max. Anti-rolling torque

68.200 Nm at max. rated speed

Input voltage (AC)

380V nominal, 50/60 Hz, three phase

Control DC power input

24 Vdc

Envelope dimensions

1.36 x 1.41 x 1.02 m [53.5 x 55.5 x 40.1 in]

Weight

1770 kg [3902 lbs]

Target Boat

80 - 95’ or up to 100 tons

Maximum rated speed

5.000 RPM

Angular momentum

37.000 Nms at max. rated speed

Max. Anti-rolling torque

90.100 Nm at max. rated speed

Input voltage (AC)

380V nominal, 50/60 Hz, three phase

Control DC power input

24 Vdc

Envelope dimensions

1.36 x 1.41 x 1.02 m [53.5 x 55.5 x 40.1 in]

Weight

1960 kg [4321 lbs]

Target Boat

45 – 55’ or up to 25 tons

Maximum rated speed

9.500 RPM

Angular momentum

5.900 Nms at max. rated speed

Max. Anti-rolling torque

15.500 Nm at max. rated speed

Input voltage (AC)

115V nominal, 50/60 Hz, single phase
220V nominal, 50/60 Hz, single phase

Control DC power input

12 Vdc

Envelope dimensions

0.76 x 0.77 x 0.65 m [29.9 x 30.3 x 25.6 in]

Weight

495 kg [1091 lbs]

Target Boat

50 – 60’ or up to 40 tons

Maximum rated speed

7.500 RPM

Angular momentum

9.100 Nms at max. rated speed

Max. Anti-rolling torque

19.000 Nm at max. rated speed

Input voltage (AC)

220V nominal, 50/60 Hz, single phase

Control DC power input

24 Vdc

Envelope dimensions

0.86 x 0.93 x 0.72 m [34.0 x 36.5 x 28.4 in]

Weight

650 kg [1430 lbs]

Target Boat

55 – 65’ or up to 50 tons

Maximum rated speed

5.500 RPM

Angular Momentum

12.500 Nms at max. rated speed

Max. Anti-rolling torque

34.300 Nm at max. rated speed

Input voltage (AC)

220V nominal, 50/60 Hz, single phase

Control DC power input

24 Vdc

Envelope dimensions

1.08 x 1.11 x 0.87 m [42.4 x 43.7 x 34.3 in]

Weight

910 kg [2006 lbs]

LOOKING FOR GREATER SUPPORT?

FIND DEALER
tech_drawing03
TECHNICAL DRAWINGS
Check SG unit dimensions and footprints in detail.
DOWNLOAD
download_new
DATA SHEET
Read SG units' complete technical specifications.
DOWNLOAD
warranty02
MANUAL
Read the Operation Manual before using the stabilizer.
DOWNLOAD
brochure02
BROCHURE
Download the Smartgyro corporate brochure.
DOWNLOAD

THE FUTURE OF MARINE STABILIZATION

  • MODULAR DESIGN
    The Smartgyro unit can be serviced, maintained, and assembled directly inside the boat.



  • LIQUID COOLING
    The liquid cooling system dissipates heat generated by the motor and spinning bearings while also cooling the inverter and hydraulic manifold.



  • VACUUM ENCLOSURE
    The sealed vacuum flywheel enclosure minimizes air drag to increase performance and reduce heat and power consumption.

  • CONTROL ELECTRONICS
    The gyro control module uses motion sensors and an Inertial Measuring Unit (IMU) to monitor and process real-time boat behavior data.

  • BRAKING SYSTEM
    The pressurized, closed loop braking system dynamically controls the gyro using hydraulic cylinders and proportional valve.



  • DRIVING PERFORMANCE
    The Smartgyro automatically locks the gyro’s counteracting forces during high-speed turns to make for smoother sailing.

09
TOUCH

BACKED BY A GLOBAL LEADER

BACKED BY A GLOBAL LEADER

Smartgyro boasts a worldwide distribution network backed by strategic partner YANMAR and its companies, including VETUS, Maxwell, and Flexofold.

20
TOUCH

WORLD-CLASS WARRANTY

WORLD-CLASS WARRANTY

From installation to maintenance and beyond, we are committed to keeping our customers on the water. Smartgyro recreational units come with unique three year/2000 hours* warranty coverage for unrivaled peace of mind.

*whichever occurs first
